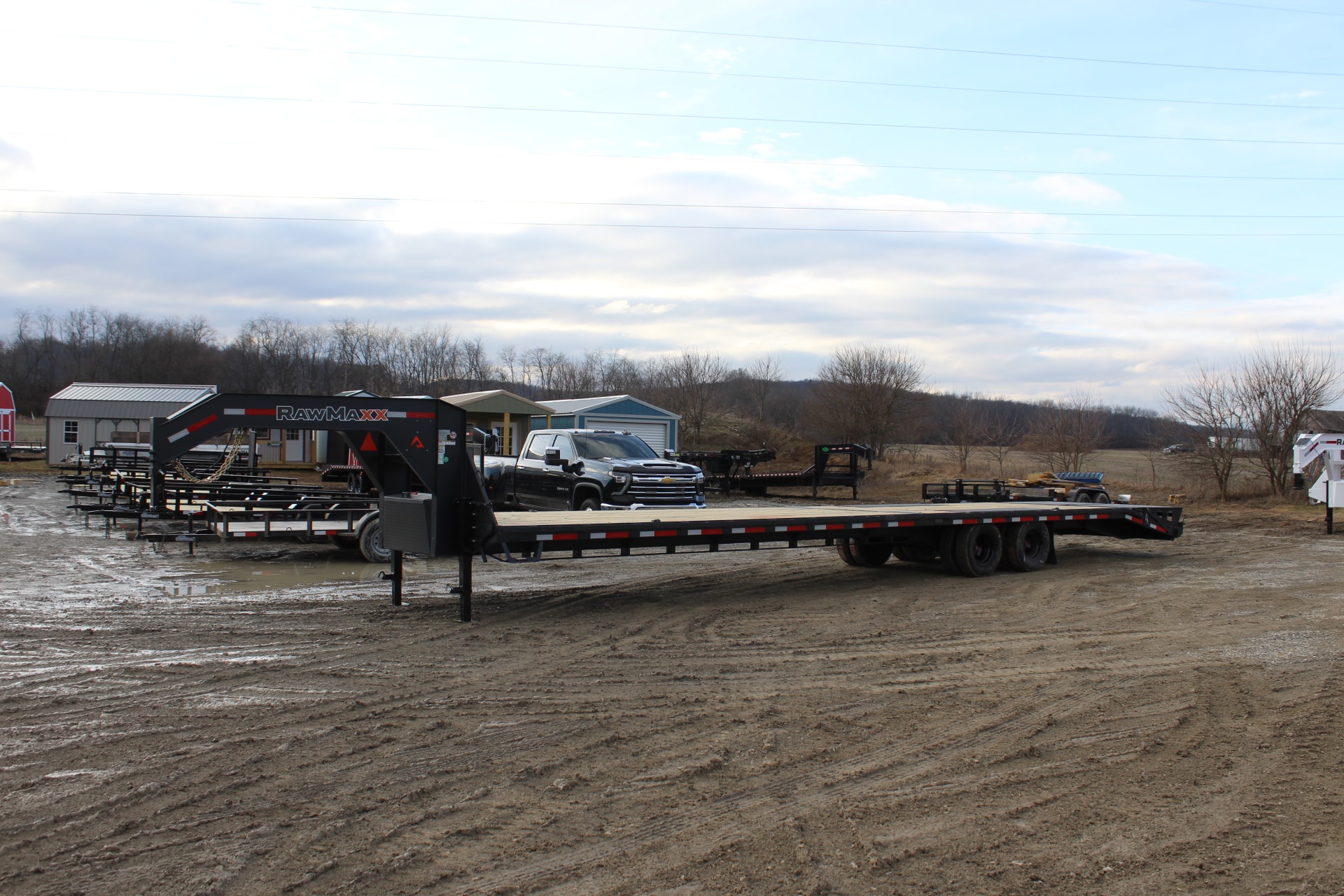

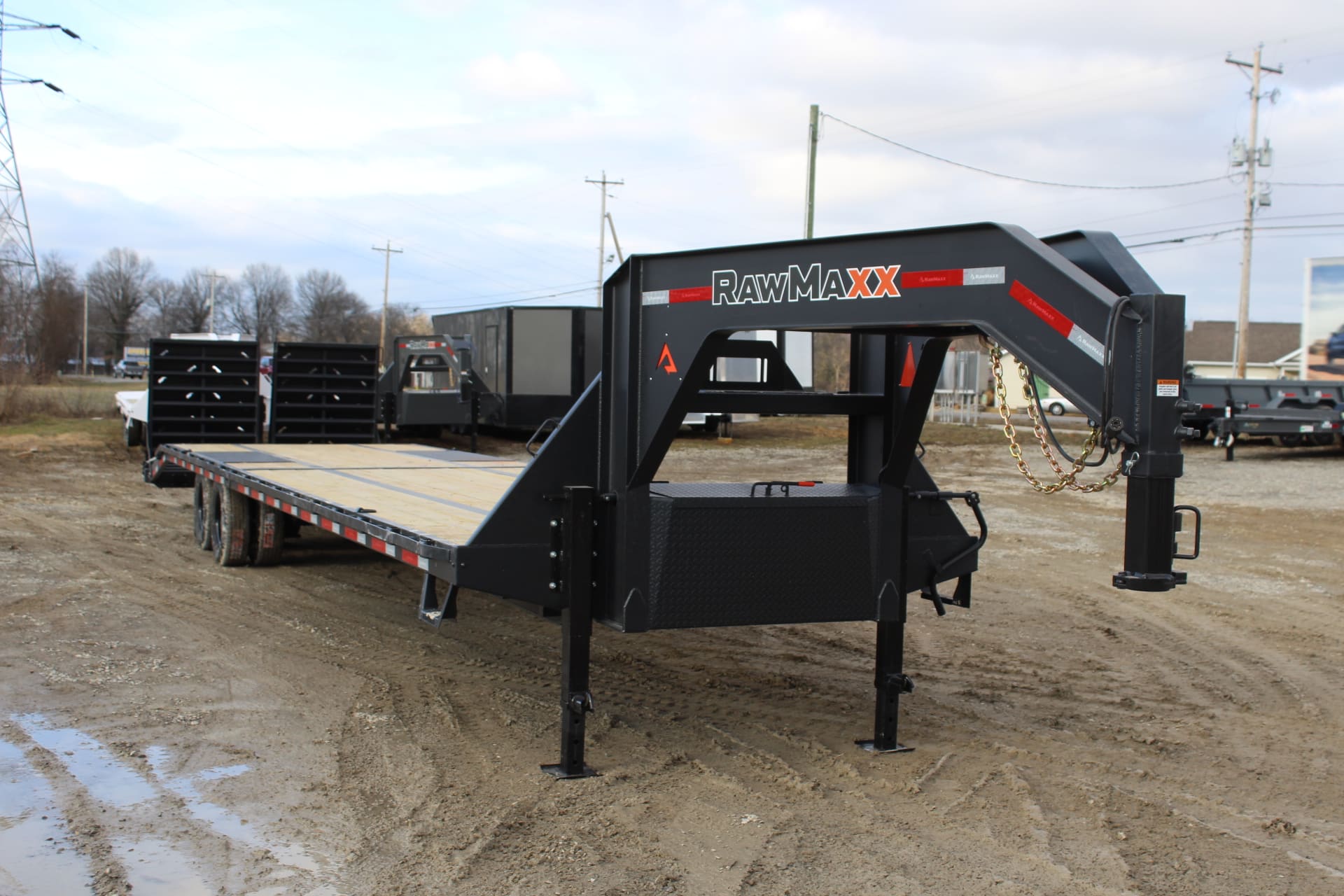

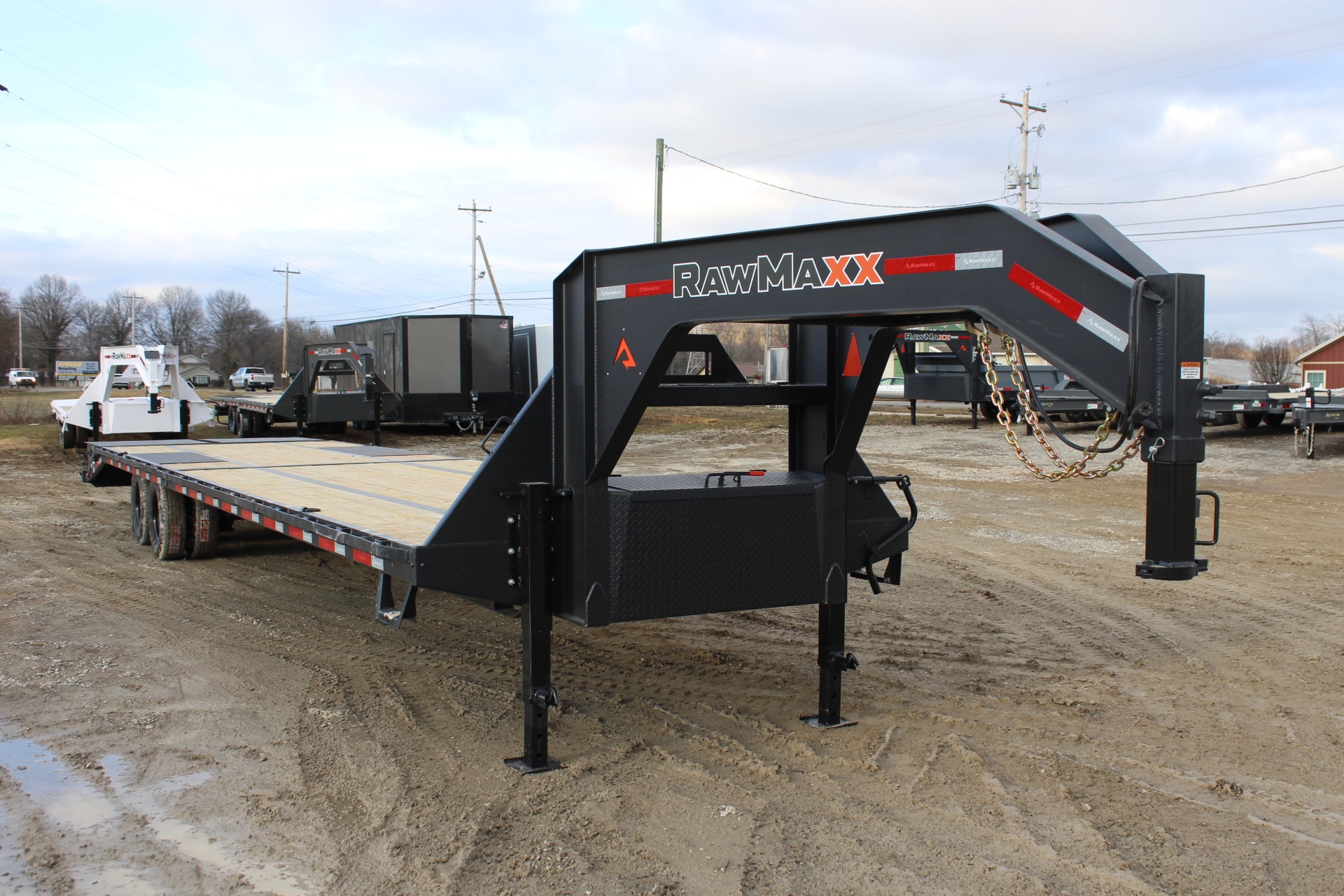

Trailer Specifications:Dimensions • Length: 40’ • Width: 102” • Deck Height: 35”Weight Rating • GVWR (Gross Vehicle Weight Rating): 20,000 lbs • GAWR (Gross Axle Weight Rating): 10,000 lbs • Empty Weight: 9,093 lbs • Load Capacity: 13,634 lbsFinish • Type: Powder Coat • Prep: Grit Blast • Standard Color: Jet BlackWarranty • Axles: 5 Year Dexter

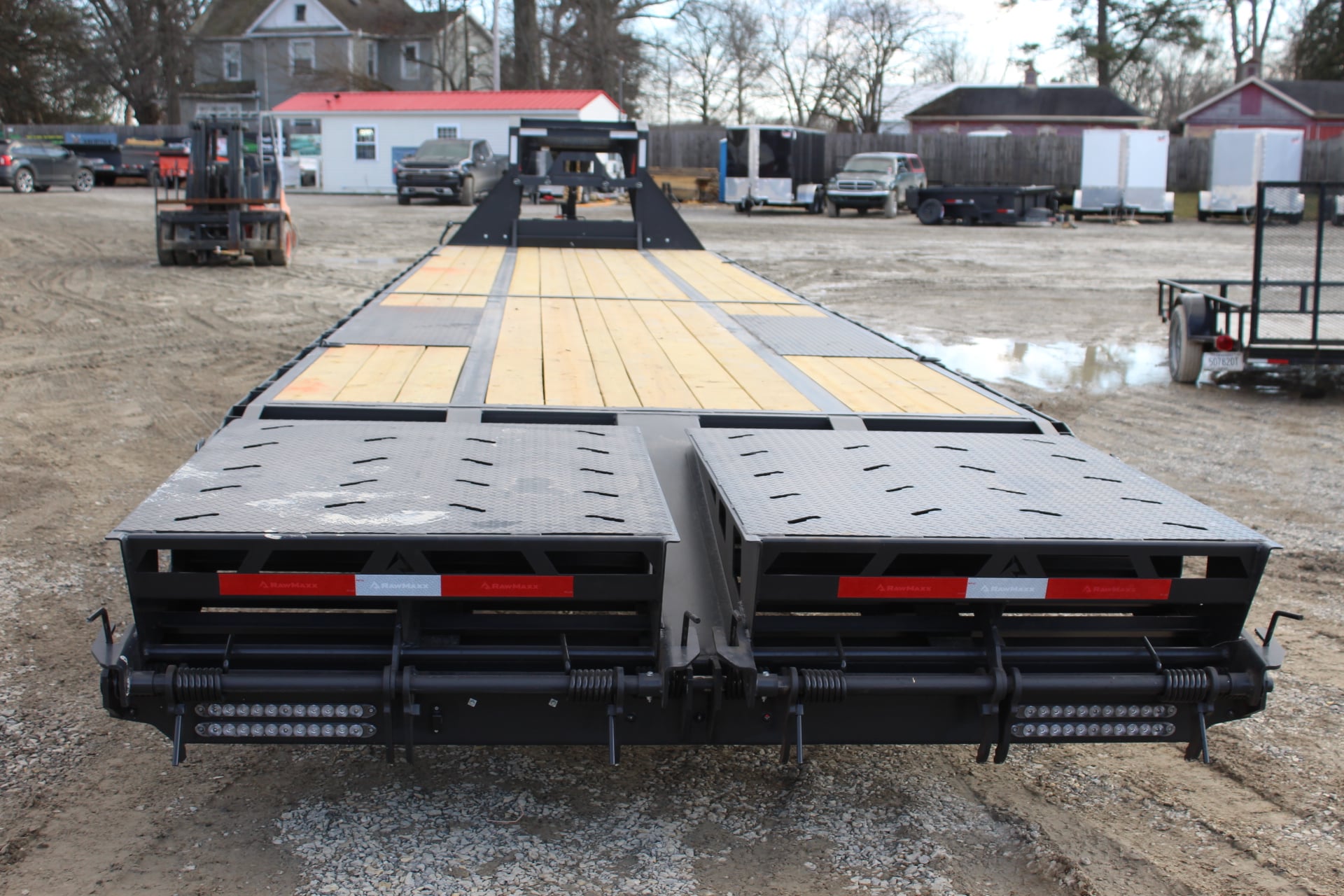

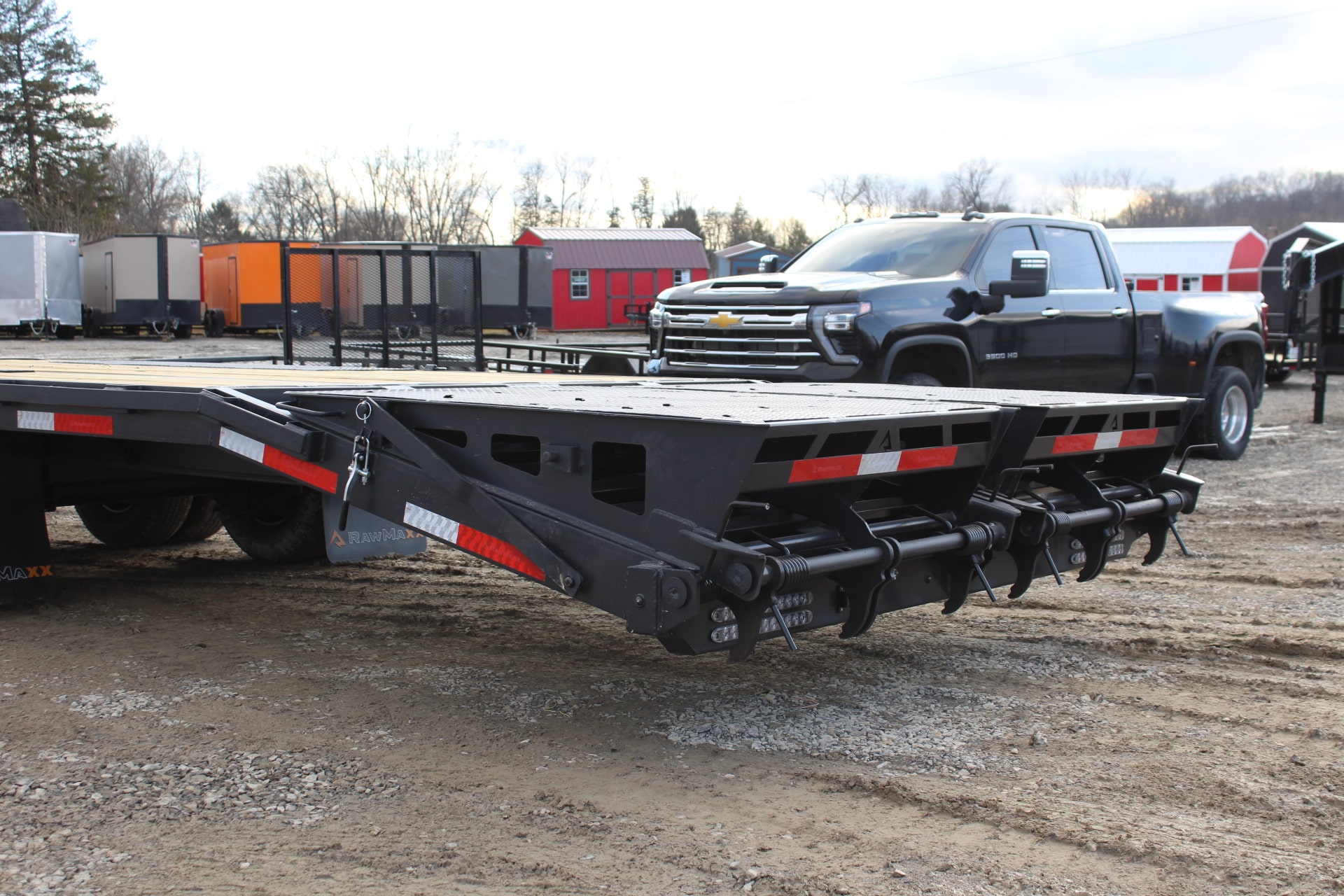

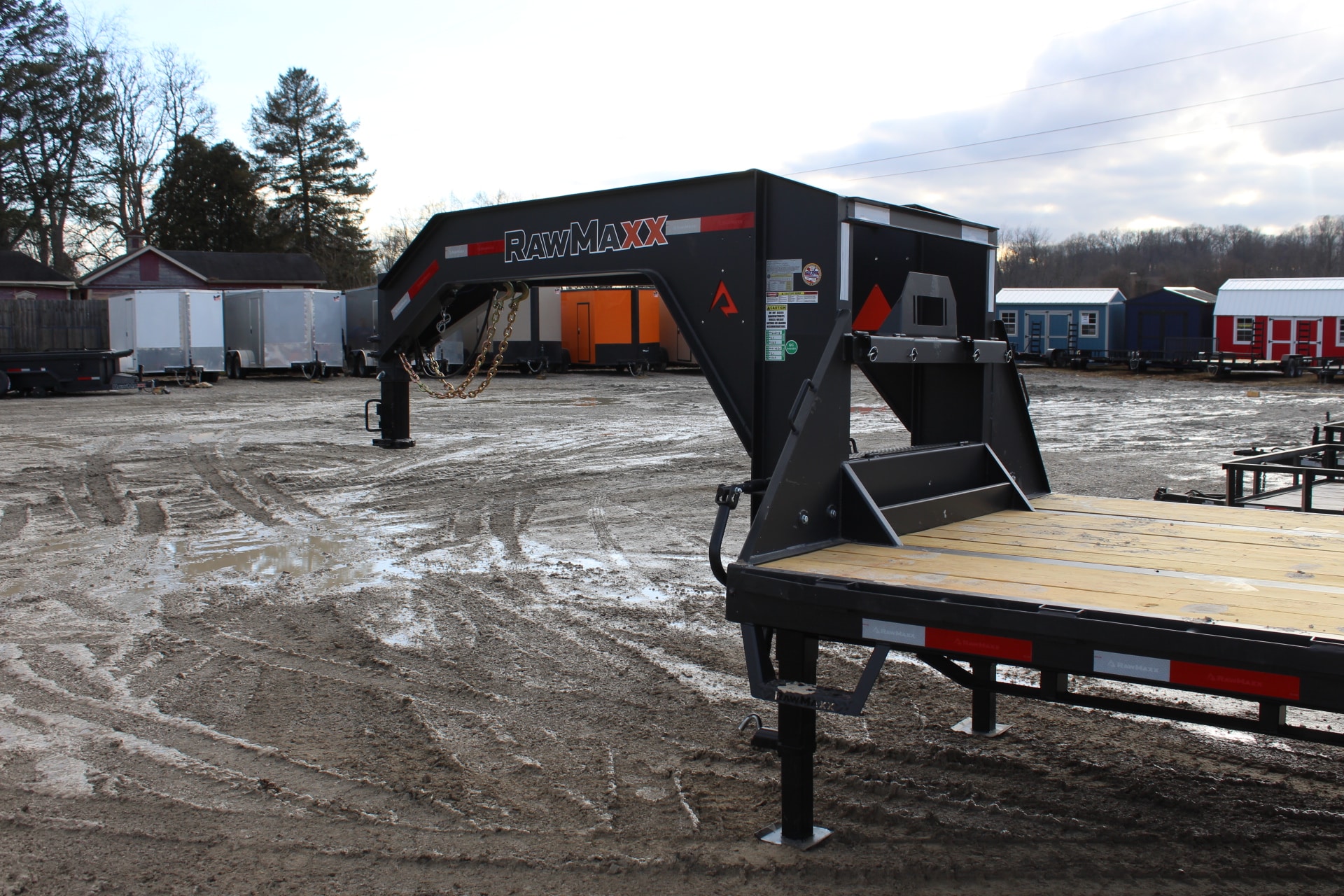

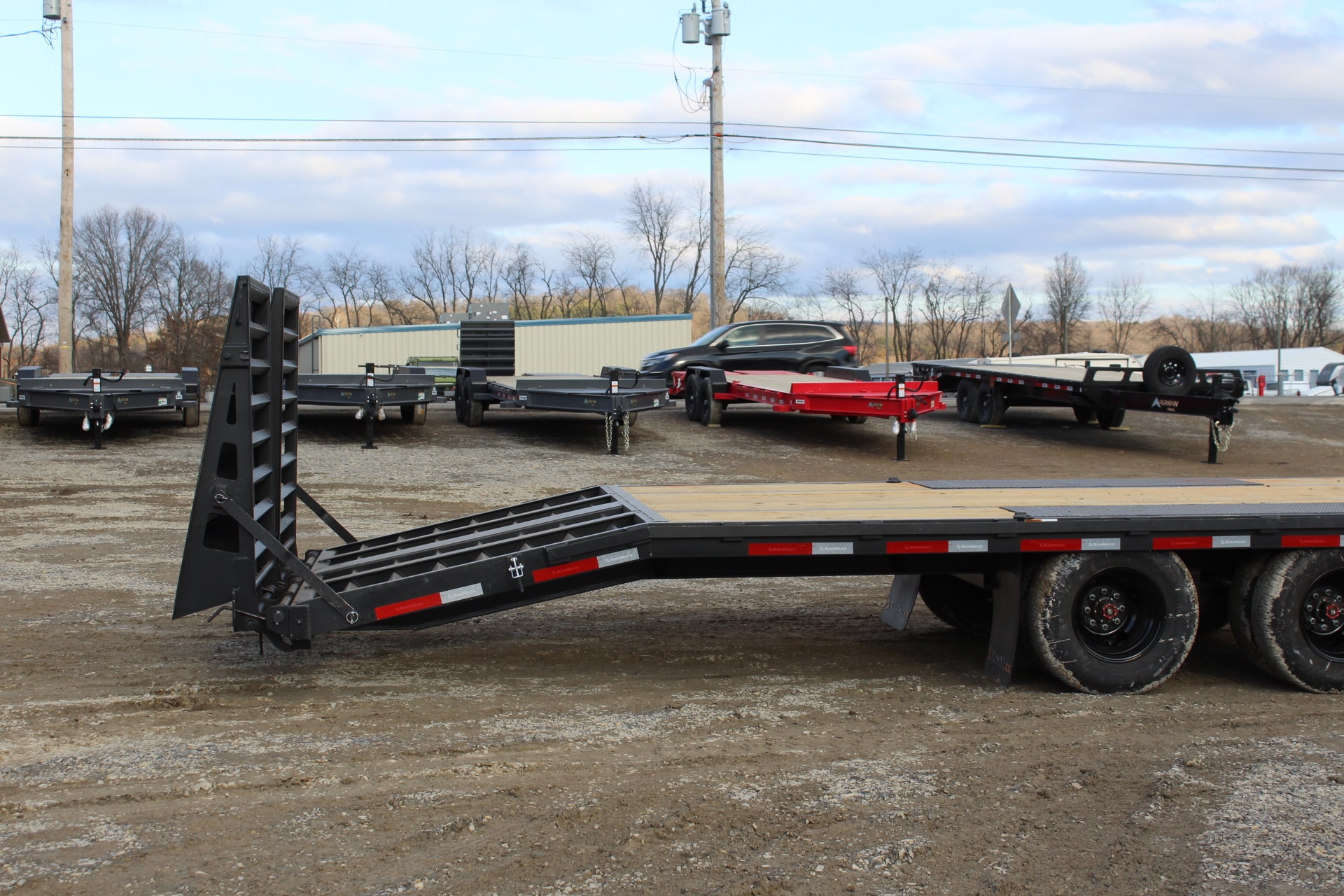

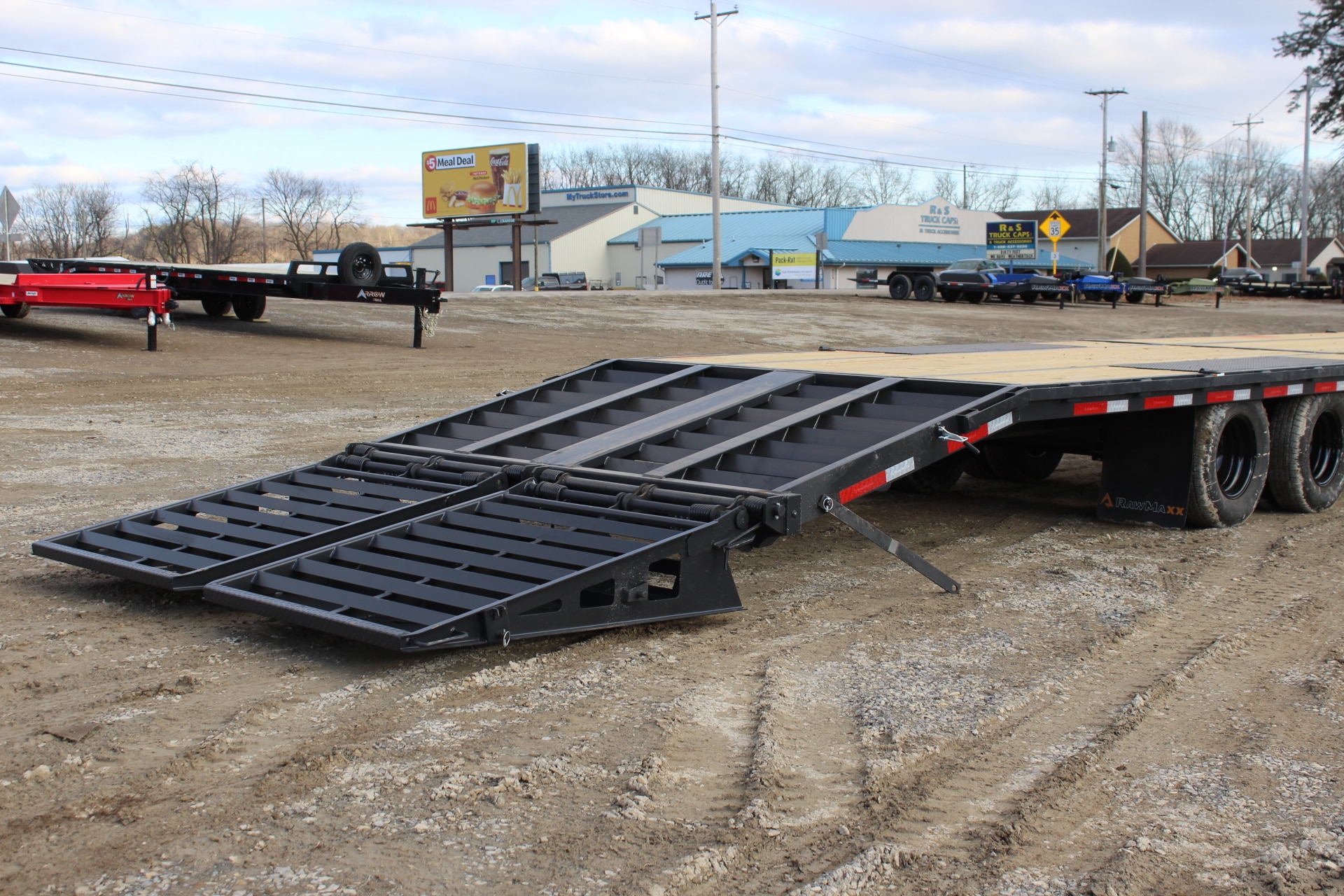

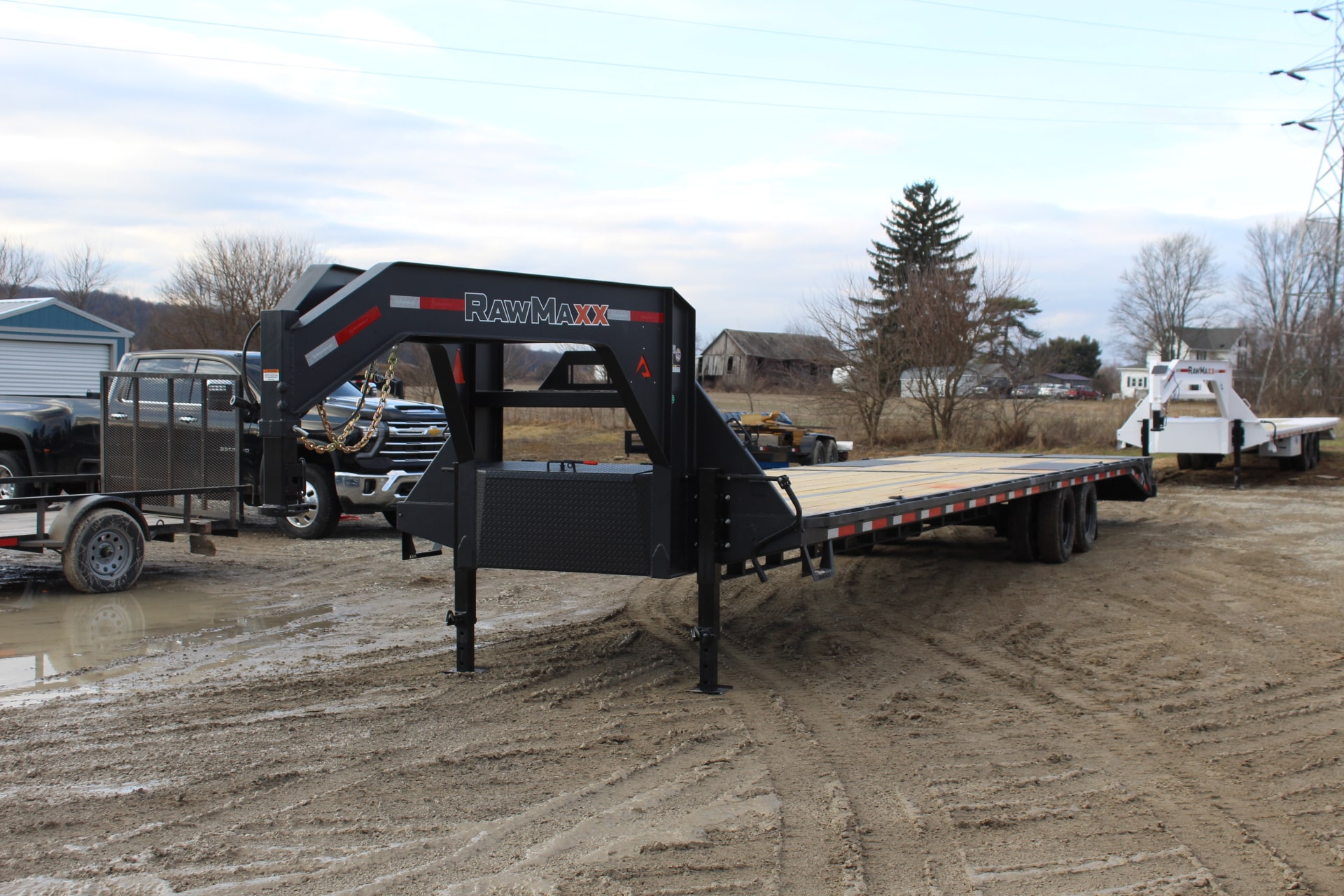

• Trailer: 3 Year Structural / 1 Year PaintGooseneck • Coupler: 2-5/16” Ball CouplerJacks • Front Jacks: 2 Side Wind Drop Legs – 10,000 lbsTool Box • Location: Between Risers • Feature: Lockable LatchGooseneck Length: 96”Safety System • Safety Chains: 3/8” G70 Safety Chains • Breakaway System: Electric Breakaway Kit • Reflective Tape: 3M DOT Compliant Reflective TapeFrame • Deck Flooring: 2” Treated Lumber Deck • D-Rings: 4 Welded Outside Perimeter D-Rings • Side Perimeter: 2” x 5” x 1/8” Tubing Outer Deck Frame • Stake Pockets: 3-5/8” x 1-1/2” (ID) Stake Pockets • Fenders: 3/16” Treadplate • Frame: 12” x 19 lbs. I-Beam Main Frame • Cross Members: 3” Channel / 16” Spacings • Torque Tube: 5” Round TubeRear Tail • Deck: 7’ Slide-In Channel Ramps • Side Step: G10 Sides / G12 Diamond Plate Step • Handle: 1/2” Round RodRunning GearTires

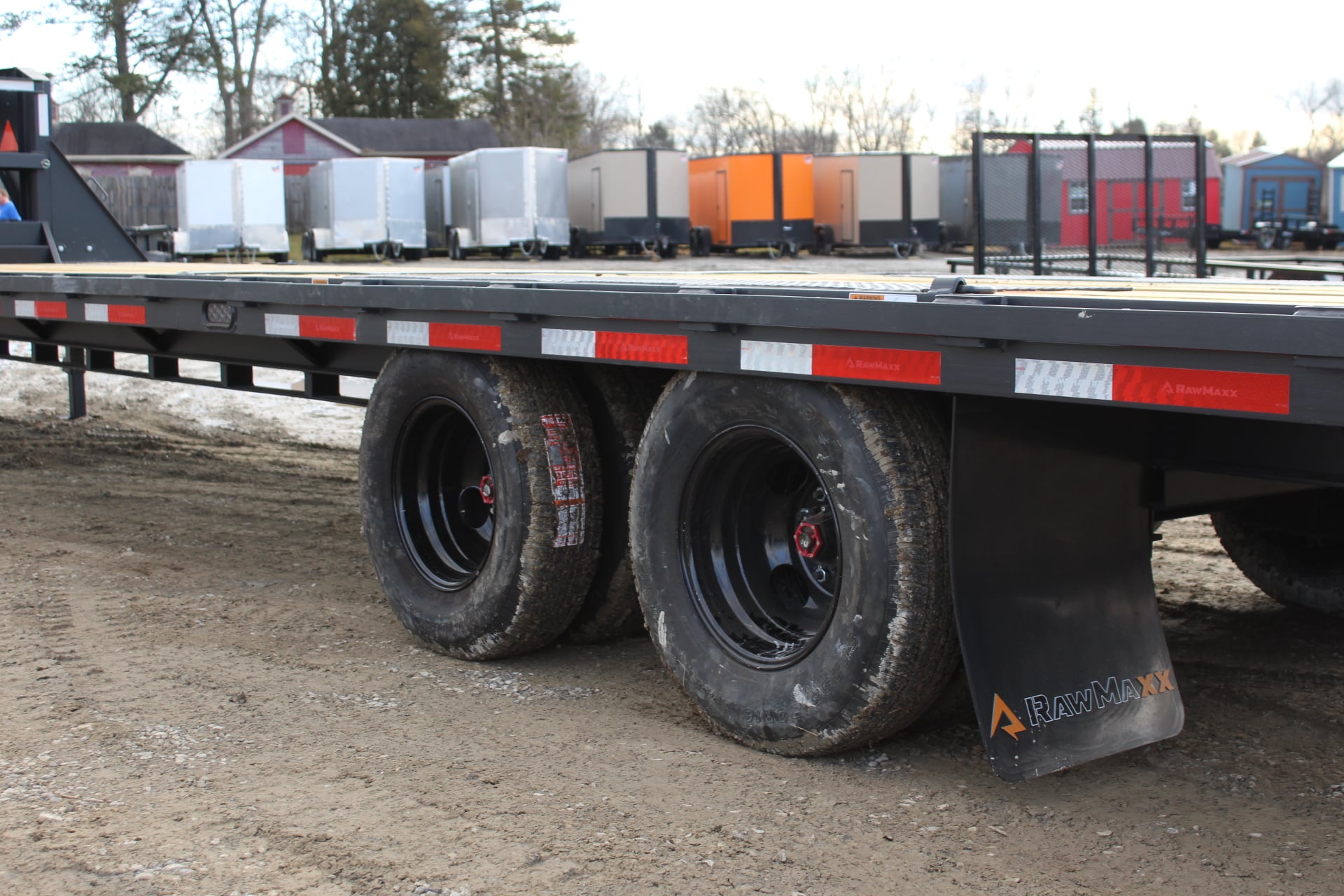

• Type: Radial Tires • Size: ST235/80R16 • Ply: 10 Ply • Rating: 3,520 lbs • Rims: 16” Dual Black Mod Wheels • Bolt Pattern: 8 on 6.5”Suspension • Axles: 2 • Rating: 10,000 lbs • Brakes: Electric • Type: 6-Leaf Slipper SpringElectrical & LightingWiring • Front Plug: 7-Way Plug • Frame Wiring: All-Weather Wiring HarnessLighting • Side Markers: 3/4” LED Bullet Lights • Turn Flashers: 2” x 6” Amber Side Turn Lights • Rear Lights: DOT Approved LED Lights
