LPX - 16' Dump Trailer

Trailer Specs

Dimensions

Length: 16'

Width: 83"

Weight Rating

GVWR: 14,000 lbs.

GAWR: 7,000 lbs.

Empty Weight: 5,896 lbs.

Load Capacity: 9,319 lbs.

Finish

Type: Powder Coat

Prep: Grit Blast

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Feature Details

Tongue

Tongue: 8" x 13 lb. I-beam

Tongue Length: 65"

Coupler

Coupler: 2-5/16” Adjustable Ball Coupler

Jacks

Jack: 1 Side Wind Drop Leg - 10,000 lbs.

Tool Box

Tongue Tool Box: Mega Boxx for Pump, Battery & Charger

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Chassis

Frame

Main Frame: 8" x 13 lb. I-beam Frame

Cross-Member: 4" x 6" x 3/16" Tubing

Dump Bed

Tilt Frame

Type: 5' x 5" x 3/8" Angle

Cross-Members: 3" Channel / 16" Spacings

Dump Bed

Inside Width: 83"

Side Height: 22"

Flooring: 7G One Piece Floor

Side Walls: 10G Formed Walls

Fenders: 12G Diamond Plate Steel

D-Rings: 4 D-Rings (Welded Inside Corners)

Side Posts: 10G formed plate (4 per side)

Stake Pockets: 10G formed plate (5 per side)

Side Rail: 10G formed plate

Cargo Capacity:

9.5 Cubic Yards

Rear Gate

Gate: 3 Way Doors

Latching System: EZ Slam Door Latches

Ramps: 6' Slide-In Channel Ramps

Lift System

Power: Hydraulic - Powder Up - Down

Pump: KTI 12V Hydraulic Pump

Controller: 14' Cable with Control

Scissor: Heavy Duty Scissor Lift

Cylinder: 6" x 20" Cylinder

Tilt Angle: 48°

Tarp

Manual Tarp Kit

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Spring

Axles: 2

Rating: 7,000 lbs.

Brakes: Electric

Electrical & Lighting

Wiring

Front Plug: 7 - Way

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Rear Lights: DOT Approved LED Lights

Battery & Charging

Battery: 27M Deep Cycle Marine Battery

Charging System: 110V Integrated Trickle Charger

Jack

7,000 lbs. Stabilizer Jacks

Tires

10 Ply 235/80R16

LPX

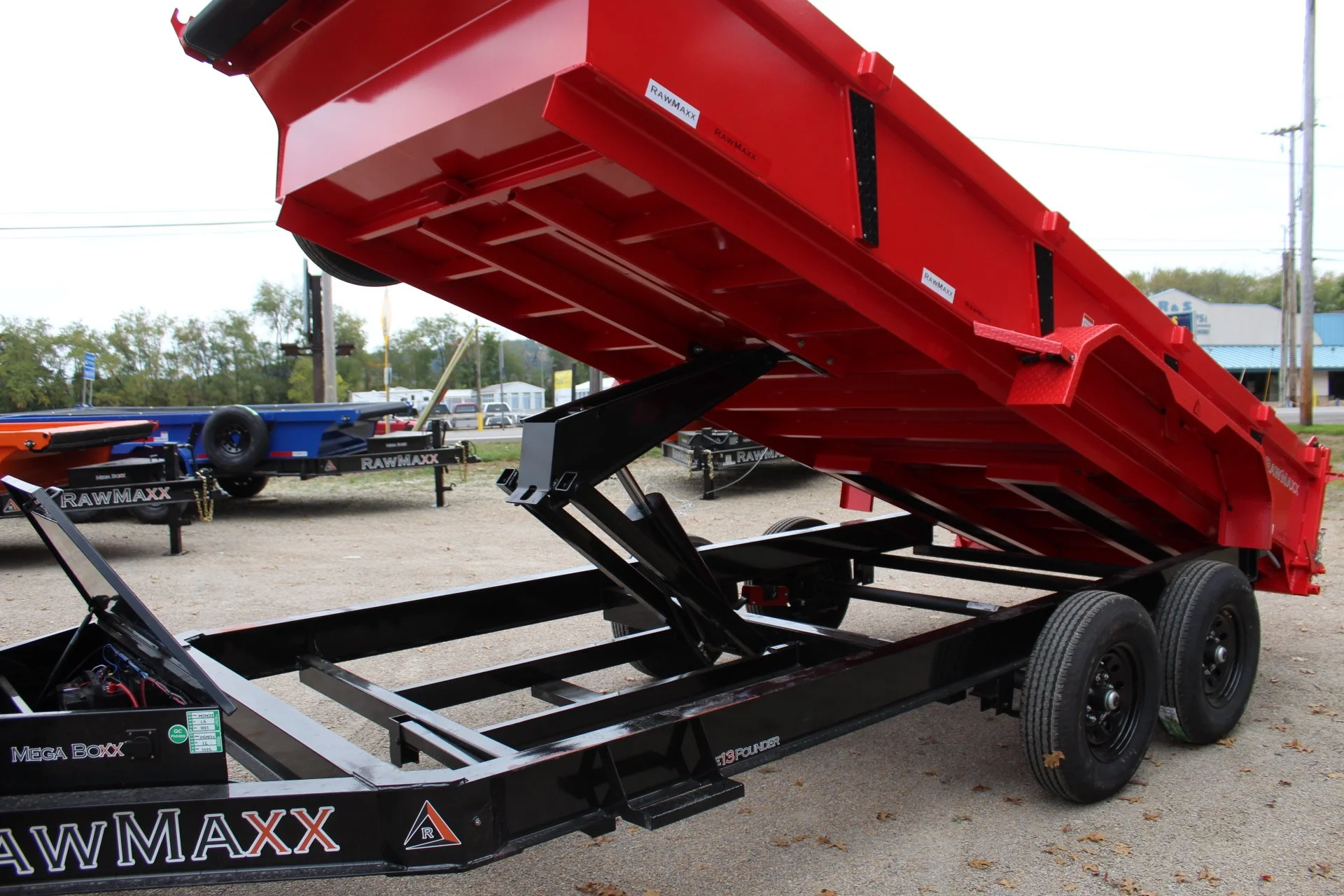

The LPX dump trailer, a reliable and sturdy option for hauling heavy loads. With its 5′ x 5″ x 3/8″ angle type tilt frame and 3″ channel cross-members with 16″ spacings, this trailer can handle even the toughest jobs. The scissor lift system, powered by a KTI 12V hydraulic pump, provides smooth and easy operation. The trailer’s safety features, including 3/8″ G70 safety chains and DOT-approved LED lights, ensure the safety of both the driver and other vehicles on the road.

The 3-1 spreader gate with EZ slam door latches makes loading and unloading a breeze, while the 6′ slide-in channel ramps allow for easy access. The LPX also includes a convenient tongue tool box and stake pockets for extensions, adding to its versatility. With a manual tarp kit and a spare tire mount located on the right side, this trailer is ready for any job.
