MDX - 12' Dump Trailer

Trailer Specs

Dimensions

Length: 12'

Width: 77"

Deck Height: 24"

Weight Rating

GVWR: 10,400 lbs.

GAWR: 5,200 lbs.

Empty Weight: 4,314 lbs.

Load Capacity: 6,423 lbs.

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Tongue

Coupler

Coupler: 2 5/16” Adjustable Ball Coupler

Jacks

Jack: 1 Side Wind Drop Leg - 7,000 lbs.

Tool Box

Tongue Tool Box: Tool Box for Pump, Battery & Charger

Tongue

Tongue: 5" C Channel Tongue

Tongue Length: 58"

Safety System

Safety Chains: 1/4" Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Chassis

Frame

Main Frame: 5" C Channel Frame

Cross-Member: 4" x 3" x 3/16" Tubing

Dump Bed

Tilt Frame

Type: 5" C Channel

Cross-Members: 3" Channel / 16" Spacings

Dump Bed

Inside Width: 77"

Side Height: 19"

Side Walls: 12G Formed Walls

Flooring: 10G Steel Floor

Fenders: 12G Diamond Plate Steel

D-Rings: 4 D-Rings (Welded Inside Corners)

Side Posts: 12G formed plate (3 per side)

Stake Pockets: 12G formed plate (3 per side)

Side Rail: 12G formed plate

Spare Tire Mount: Located at front Passenger Side Wall

Cargo Capacity

4.3 Cubic Yards

Rear Gate

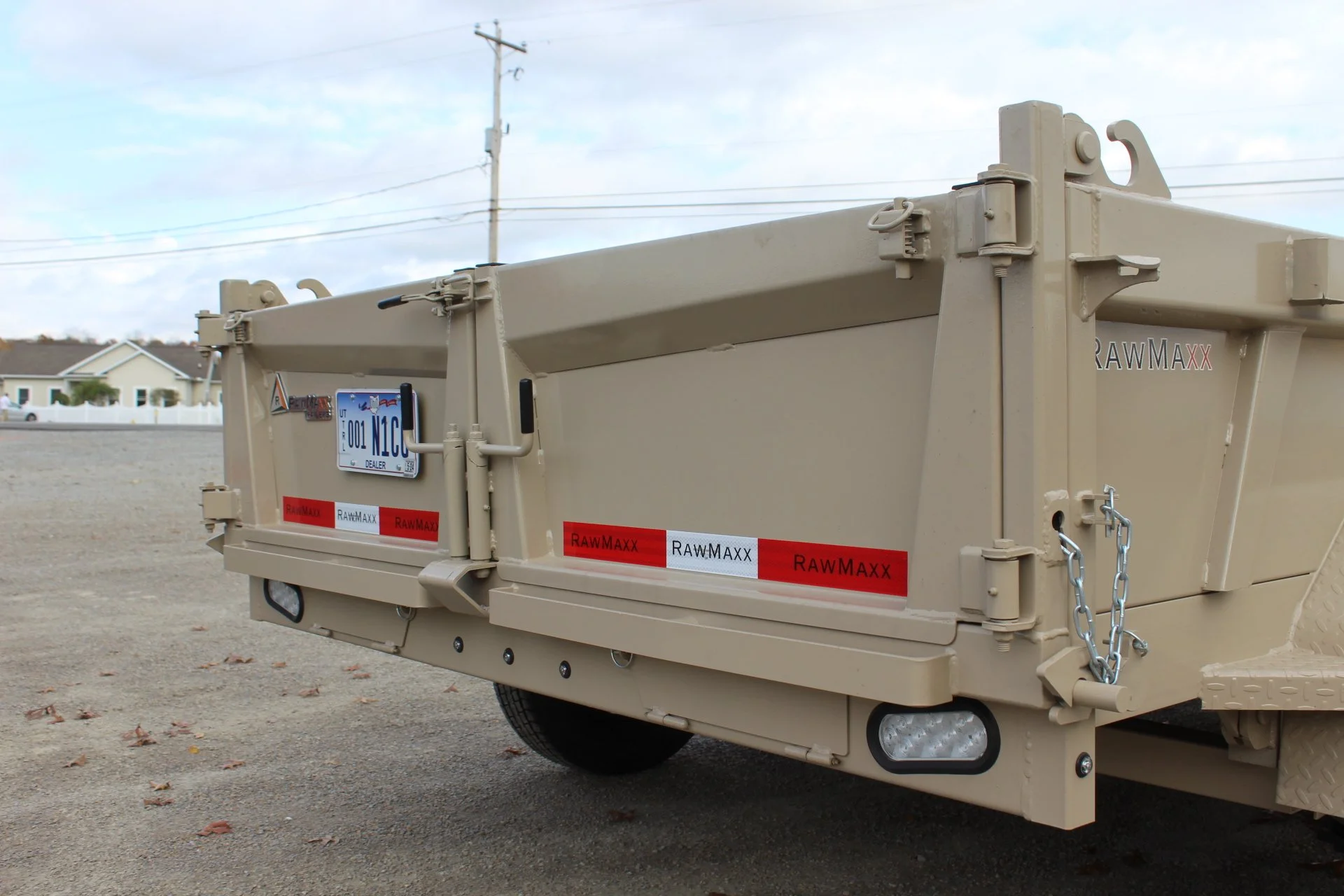

Gate: 3 Way Doors

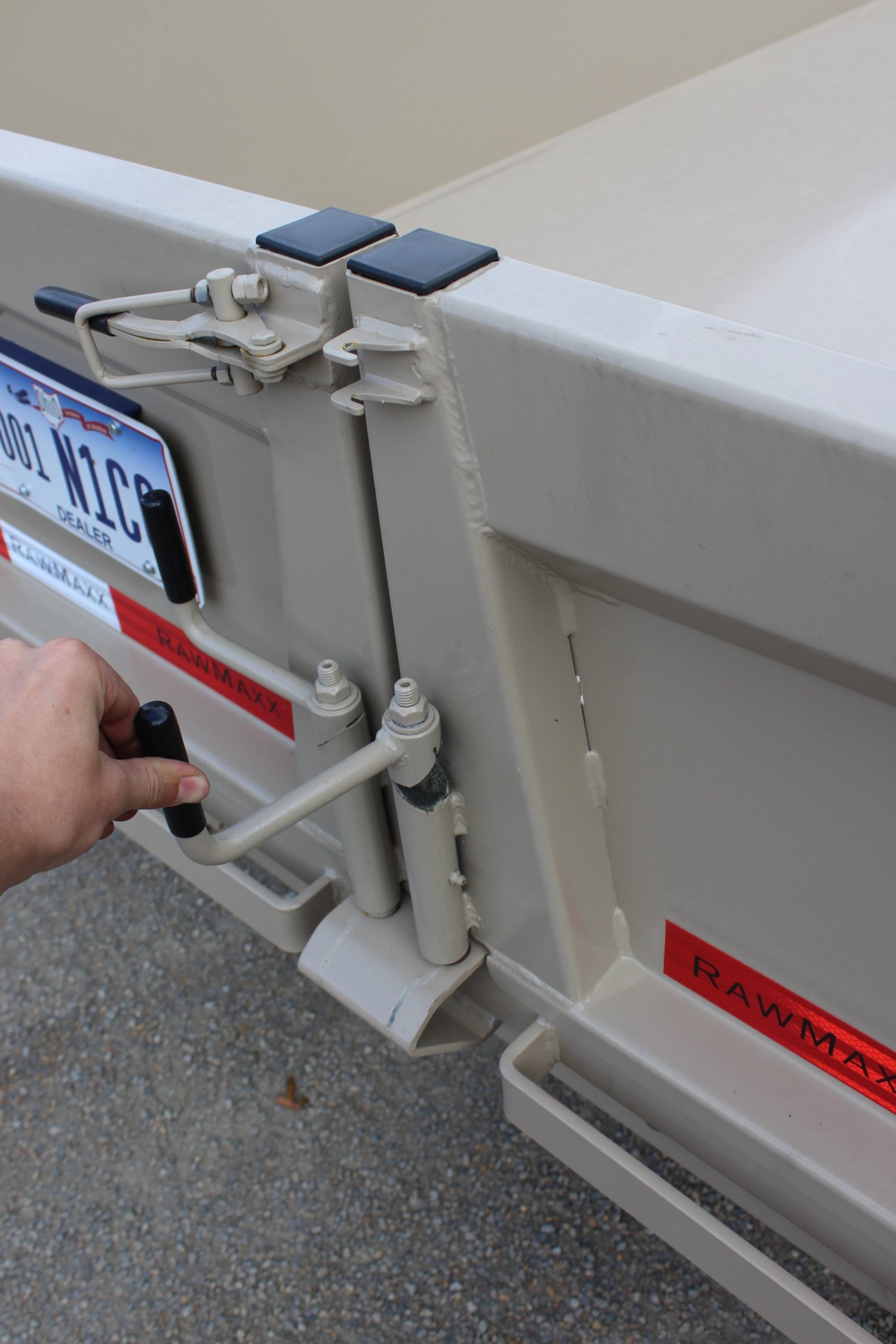

Latching System: EZ Slam Door Latches

Ramps: 5' Slide-In Channel Ramps

Lift System

Power: Hydraulic - Powder Up - Down

Pump: KTI 12V Hydraulic Pump

Controller: 14' Cable with Control

Scissor: Heavy Duty Scissor Lift

Cylinder: 5" x 16" Cylinder

Tilt Angle: 41°

Tarp

Manual Tarp Kit

Running Gear

Tires

Type: Radial Tires

Size: ST225/75R15

Ply: 8 Ply

Rating: 2,540 lbs.

Rims: 15” Black Mod Wheels

Bolt Pattern: 655

Suspension

Axle Type: Spring

Axles: 2

Rating: 5,200 lbs.

Brakes: Electric

Type: 5-Leaf Slipper Spring Suspension

Electrical & Lighting

Wiring

Front Plug 7 - Way RV

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Rear Lights: DOT Approved LED Lights

Battery & Charging

Battery: 27M Deep Cycle Marine Battery

Charging System: 110V Integrated Trickle Charger
